Autonity R6

• Preparing the server

• 1. Install the Autonity Utility (aut)

• 2. Install Autonity node

• 3. Install Oracle

  • FORM 1 - REGISTRATION

  • VALIDATOR REGISTRATION

  • FORM 2 - VALIDATOR REGISTRATION

  • Validator migration

Details

• Piccadilly Testnet details

  Field	Input
  Network Name	Autonity Piccadilly (Barada) Testnet
  New RPC URL	https://rpc1.piccadilly.autonity.org/
  ChainID	65100003
  Symbol	ATN
  Block Explorer URL (optional)	https://piccadilly.autonity.org/

Round 6 is open!

• Start Time : 06/26/24 - 00:00 UTC

Basic information and form here - https://www.autonity.org/validators/#become-a-validator

Preparing the server :

# update repositories
apt update &&  apt upgrade -y

# install the necessary utilities
apt  install  curl iptables build-essential git  wget jq make gcc nano tmux htop nvme-cli pkg-config libssl-dev libleveldb-dev tar clang bsdmainutils ncdu unzip chrony libleveldb-dev liblz4-tool -y

File2Ban - more details here and here

# install and copy the config, which will have a higher priority
apt  install fail2ban -y  &&  \
cp /etc/fail2ban/jail.conf /etc/fail2ban/jail.local &&  \
nano /etc/fail2ban/jail.local
 # uncomment and add your IP: ignoreip = 127.0.0.1/8 ::1 <ip>
systemctl restart fail2ban

# check status
systemctl status fail2ban
# check which jails are active (by default only sshd)
fail2ban-client status
# check sshd statistics
fail2ban-client status sshd
# look at the logs
tail /var/log/fail2ban.log
 # stop work and remove from startup
#systemctl stop fail2ban && systemctl disable fail2ban

Installing GO :

ver = "1.21.3"  &&  \
wget  "https://golang.org/dl/go $ver .linux-amd64.tar.gz"  &&  \
sudo  rm  -rf /usr/local/go &&  \
sudo  tar  - C /usr/local -xzf  "go $ver .linux-amd64.tar.gz"  &&  \
rm  "go $ver .linux-amd64.tar.gz"  &&  \
echo  "export PATH= $PATH :/usr/local /go/bin: $HOME /go/bin"  >>  $HOME /.bash_profile &&  \
source  $HOME /.bash_profile &&  \
go version

We install ethkey, which we will need next to pull out the private one :

git clone https://github.com/autonity/autonity.git autonity1
cd autonity1
make all
mv build/bin/ethkey /usr/local/bin
ethkey --version
#ethkey version 0.14.0-15cd0164-20240619

Important: If you have problems installing aut or other binaries, add the following variables and do this make clean before installing again :

export  CGO_CFLAGS = "-O -D__BLST_PORTABLE__"
export  CGO_CFLAGS_ALLOW = "-O -D__BLST_PORTABLE__"
make clean

1. Install the Autonity Utility (aut)

The recommended way to interact with the Autonity network is through the Autonity Utility Tool aut , which provides a command line interface for Autonity-specific queries and operations, as well as much of the core Ethereum functionality. Typically, it only needs to be installed on local machines to connect to the Autonity Go client RPC endpoint (either your own host or a host providing public RPC access) :

# For ubuntu 20.04
cd
apt  install python3-pip &&  \
apt  install python3.8-venv &&  \
pip install pipx

# For ubuntu 22.04
cd
apt  install python3-pip &&  \
apt  install python3.10-venv &&  \
pip install pipx

# to install or update
pipx install  --force git+https://github.com/autonity/aut
mv /root/.local/bin/aut /usr/local/bin/aut

aut --version
#aut, version 0.4.0

We create .autrca file thanks to which the aut utility will search for a specific configuration :

tee  << EOF > /dev/null $HOME /.autrc
[out]
rpc_endpoint= ws://127.0.0.1:8546
EOF

2. Install Autonity node

The team assumes that Autonity Go will be installed on a host machine (VPS or other host that is always on and always available), and a separate local machine will be used to create transactions and requests that are then sent to the Autonity Go client on the host machine via an RPC endpoint

In this guide we will run everything on 1 server, but these actions are not recommended!!!

Note : This guide is intended for use on test networks , for which there is no real value at stake. A production setup will likely have requirements not covered in this guide, such as node availability and security. For example, the configuration described here provides an unencrypted httpRPC endpoint

Incoming traffic must be allowed to:

• TCP, UDP 30303for communication with a p2p node (DEVp2p)

You can also allow traffic on the following ports:

• TCP 8545to establish http RPC connections with a host

• TCP 8546to establish RPC WebSocket connections with the host

• TCP 6060to export Autonity metrics (recommended, but not required)

RECOMMENDED SPECIFICATIONS

Download the binary file. Current versions can be found here

cd
git clone https://github.com/autonity/autonity &&  cd autonity
git checkout tags/v0.14.0 -b v0.14.0
make autonity

mv  $HOME /autonity/build/bin/autonity /usr/local/bin/

autonity version
 #Version: 0.14.0

We create the autonity-chaindata directory to store autonity working data and create the keys we need :

cd
mkdir  -p  $HOME /autonity-chaindata/autonity

Starting from version 0.13.0 nodekey was renamed to autonitykeys. In this tutorial we will generate nodekey ourselves. to leave the old name and add a flag --autonitykeys $HOME/autonity-chaindata/autonity/nodekeyto the service file

We need to create nodekey, tresure.key and oracle.key

nodekey is the main key of the node, from which the validator address and enode are formed

tresure.key will be our treasury. With this key we will delegate to the validator and we will receive rewards for this key

oracle.key will be used as the cryptographic identifier of the Oracle server and will be used to sign price report transactions sent to Oracle Contract on-chain

Transaction costs for submitting online pricing report data are reimbursed , but you must pre-fund your oracle.key account to prevent an out-of-gas error on your first transaction.

!!! Be sure to top up your Oracle wallet after launching the node!!!

Generating nodekey :

autonity genAutonityKeys $HOME /autonity-chaindata/autonity/nodekey --writeaddress

Create a separate directory for tresure.key and oracle.key :

mkdir  -p  $HOME /.autonity/keystore
aut account new -k  $HOME /.autonity/keystore/oracle.key
aut account new -k  $HOME /.autonity/keystore/tresure.key

IMPORTANT: Be sure to make backup copies of your keys. Also remember the passphrase you used when creating it! If you do not remember the password, you will not be able to decrypt this private key file and you may lose all funds associated with this account!!!

Now we add .autrctreasure to our key

nano  $HOME /.autrc

The line is addedkeyfile=/root/.autonity/keystore/tresure.key Create a service file

We don't need bootnodes, since everything should be pulled up using a flag--piccadilly

tee  << EOF > /dev/null /etc/systemd/system/autonity.service
[Unit]
Description=autonity node
After=network.target

[Service]
User= $USER
Type=simple
ExecStart= $( which autonity ) --datadir $HOME /autonity-chaindata --syncmode full --piccadilly --http --http.addr 0.0.0.0 --http.api aut,eth,net,txpool,web3,admin --http.vhosts \* --ws --ws.addr 127.0.0.1 --ws.api aut,eth,net,txpool,web3,admin --autonitykeys $HOME /autonity-chaindata/autonity/nodekey --nat extip: $( curl 2ip.ru )
Restart=on-failure
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable autonity

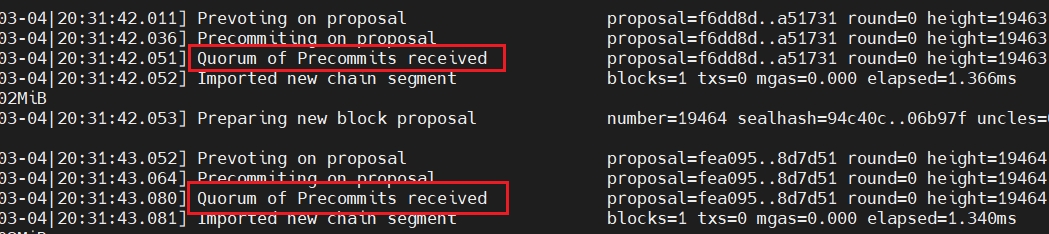

sudo systemctl restart autonity && journalctl -u autonity -f  -o  cat

3. Install Oracle

The team assumes that Autonity Oracle will run on a separate device (VPS or other host that is always on and always available) and a separate server will be used for the Autonity Go client. It is assumed that oracle will run through WSS

In this guide we will run everything on 1 server, but these actions are not recommended

Incoming traffic must be allowed to:

• TCP 8546to connect WebSocket RPC to a host

cd
git clone https://github.com/autonity/autonity-oracle &&  cd autonity-oracle
git fetch --all
git checkout v0.1.9
make autoracle
mv build/bin/autoracle /usr/local/bin
#cp e2e_test/plugins/ simulator_plugins/sim_plugin build/bin/plugins/sim_plugin

autoracle version
#v0.1.9

Now you need to edit :

vim $HOME /autonity-oracle/build/bin/plugins-conf.yml

You plugins-conf.ymlneed to uncomment the bottom lines, register using the links, get the API keys and add them below. Also, be sure to add the refresh request time: 3600 as in the screenshot below, so that the API limits do not quickly burn out

Websites:

• https://currencyfreaks.com

• https://openexchangerates.org

• https://currencylayer.com

• https://www.exchangerate-api.com

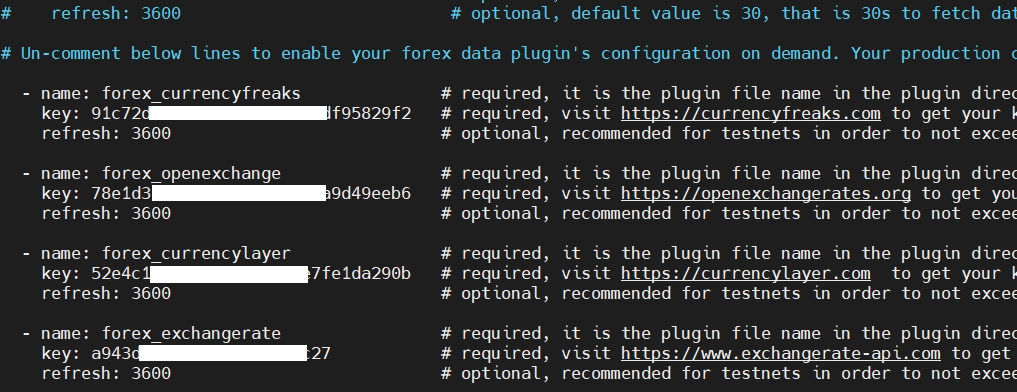

My example file looks like this

FORM 1 - REGISTRATION

IMPORTANT - register only if you did not participate in round 4 (R4)

Now is the time to register your participation in the test network to receive test tokens. To do this, go to the website and fill out the data - https://game.autonity.org/getting-started/register.html

• In the autonity address field , insert the tresure address

• In the Signature hash field , insert the hash of the signed transaction after the commandaut account sign-message "I have read and agree to comply with the Piccadilly Circus Games Competition Terms and Conditions published on IPFS with CID QmVghJVoWkFPtMBUcCiqs7Utydgkfe19wkLunhS5t57yEu"

After registration, you will receive a confirmation email and tokens should be credited to your balance. You can check your balance in Explorer or with the commandaut account info

Decoding a key file/obtaining a private key

ethkey inspect --private /root/.autonity/keystore/oracle.key

after the command you will see the private key for the oracle account! It must be used below in the genOwnershipProof command

VALIDATOR REGISTRATION

After tokens appear on your balance, you can continue

Step 1. Create a cryptographic proof of node ownership

Replace <privatekey oracle>and <tresure account address>with your values

autonity genOwnershipProof --autonitykeys  $HOME /autonity-chaindata/autonity/nodekey --oraclekeyhex  < privatekey oracle >  < treasure account address >

!!! after the transaction we saveSignature hex

Step 2. Determine the enode and validator address

# get enode
aut node info

# get the validator address
aut validator compute-address < enode >

!!! after transactions, save the validator address and enode

Step 3. Get the consensus public key

ethkey autinspect $HOME /autonity-chaindata/autonity/nodekey

Step 4. Send the registration transaction from the tresure wallet

# register the validator
aut validator register < ENODE >  < ORACLE_ADDRESS >  < CONSENSUS_KEY >  < PROOF >  | aut tx sign - | aut tx send -

!!! after the transaction we save the hash

Now we can try to find our validator address in the list

aut validator list

Check validator

aut validator info --validator  <0x8959c6f02624ba57b8a185f66c00f278d5ef9910>

We create a service file for Oracle and run it. First add the wallet password to the service file

tee  << EOF > /dev/null /etc/systemd/system/antoracle.service
[Unit]
Description=Autonity Oracle Server
After=syslog.target network.target
[Service]
Type=simple
ExecStart= $( which autoracle ) -key.file="/root/.autonity/keystore/oracle.key" -plugin.dir="/root/autonity-oracle/build/bin/plugins/" -plugin.conf= "/root/autonity-oracle/build/bin/plugins-conf.yml" -key.password="" -ws="ws://127.0.0.1:8546"
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable antoracle

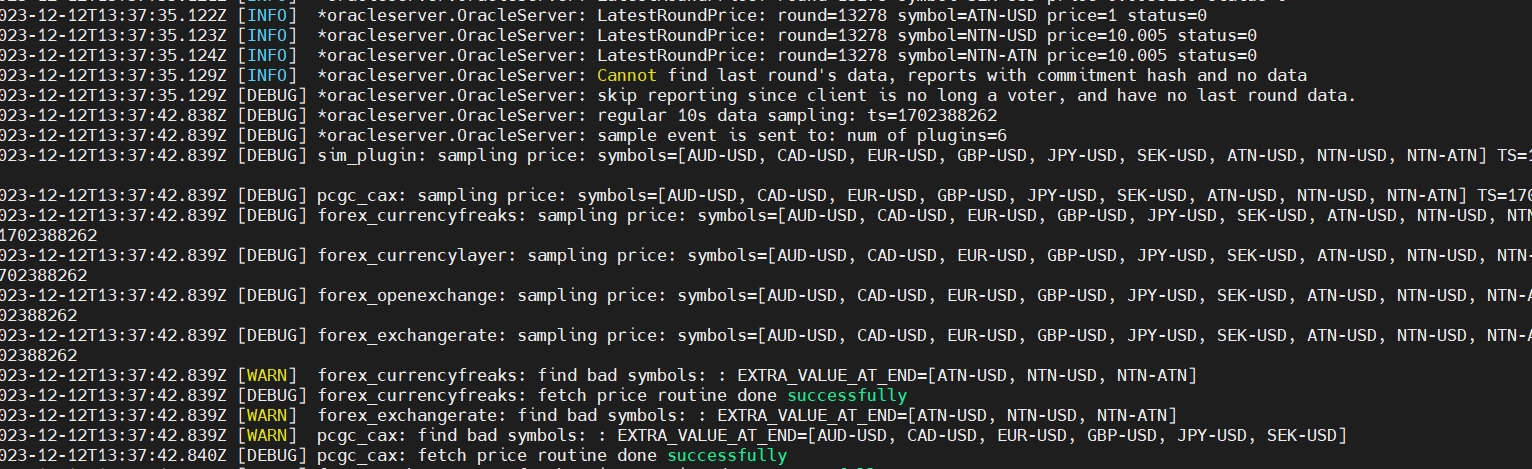

systemctl restart antoracle && journalctl -u antoracle -f  -o  cat

Now we need to bond NTN to the validator

Steak will appear by the next era

aut validator bond --validator  < validator_address >  1  | aut tx sign - |

FORM 2 - VALIDATOR REGISTRATION

Now is the time to register your validator. To do this, go to the website and read the conditions - https://game.autonity.org/round-6/validator-sdp/

You will also need to fill out the following form - https://stake-delegation.pages.dev/#join

On the node, you need to sign the message aut account sign-message "Application for the stake delegation program"and insert the hash into the SIGNATURE OF MESSAGE VALIDATOR ONBOARDED column. You need to sign with a nodekey wallet . So first we need to convert nodekey to the required format

Step 1. Get the node key from the file nodekey (autonitykeys)

This operation will show your private node key in the terminal

head  -c  64  $HOME /autonity-chaindata/autonity/nodekey

Step 2. From the received privat, create a nodekey in the home directory and enter the privat key obtained from the previous command into it

nano  $HOME /nodekey2

Step 3. Get the node key from the file nodekey (autonitykeys)

aut account import-private-key $HOME /nodekey2

Step 4. Rename the wallet to an easy-to-read format

mv  $HOME /.autonity/keystore/UTC* $HOME /.autonity/keystore/nodekey.key

Step 5. Sign the transaction

aut account sign-message "Application for the stake delegation program"  -k  $HOME /.autonity/keystore/nodekey.key

As soon as the validator is selected to the committee, we should see similar logs on the node

Validator migration

If we need to transfer a validator, then before that we need to save all our keys and nodekey (autonitykeys). Also remember the old server IP address

1. If you are validating and are in an active network (committee), then be sure to stop validating first. In this case, the validator’s active participation in the committee is suspended until reactivation. The bet is not automatically released from binding

aut validator pause --validator  < VALIDATOR_IDENTIFIER_ADDRESS >  | aut tx sign - | aut tx send -

2. In order to make sure that the validator is stopped, use the following command, in which the value is “state”: 1. Also check which epoch is currently running. I recommend launching the validator on a new server after the start of the next epoch

After you are sure that “state”: 1 you can stop the node and Oracle on the old server

aut validator info --validator  <VALIDATOR_IDENTIFIER_ADDRESS>

3. If you haven't saved nodekey and other keys before, now is the time to do it. We will need to replace our keys on the new server

4. On the new server, install the node and aut, but do not start!!!

5. Create a directory and subdirectory autonity-chaindata/autonity. Once created, move the nodekey (autonitykeys) file there

mkdir  -p autonity-chaindata/autonity

6. Now we launch the node for synchronization as standard, having previously added the --nat extip:<IP of old server> key to the launch. During the trial transfer I used the IP from the old server

7. Launch the validator after waiting for the epoch to change

aut validator activate --validator  < VALIDATOR_IDENTIFIER_ADDRESS >  | aut
